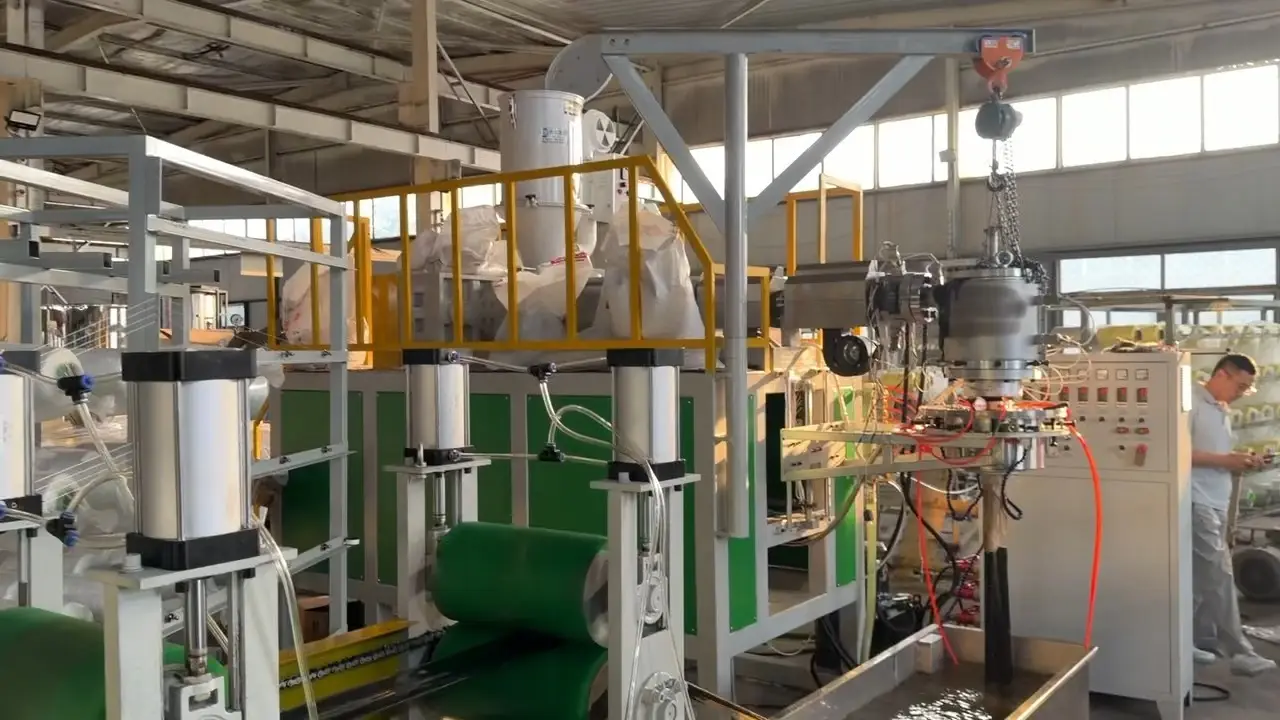

Two layers PE and one layer Fiber Reinforced Lay-flat Hose Extrusion Line
This complete extrusion line is specially designed for producing **2‑layer PE with intermediate PET yarn fiber‑reinforced lay‑flat hose (irrigation layflat water hose)**.
Adopting double‑extruder co‑extrusion plus online braiding process, it coats inner‑layer PE and outer‑layer PE on both sides of PET fiber braided net. The finished hose can be fully flattened after pressure relief for convenient rolling, storage and transportation, featuring high burst pressure, anti‑tension performance.
Applicable hose size: 2‑6 inch inner diameter. Raw materials adopt PE pellets and PET yarn. The whole line integrates extrusion, fiber braiding, vacuum calibration, cooling, haul‑off and winding, realizing one‑step continuous finished‑hose production. Widely used for agricultural irrigation, farm water conveyance, garden water supply and large‑scale field water‑transport projects.
Adopting double‑extruder co‑extrusion plus online braiding process, it coats inner‑layer PE and outer‑layer PE on both sides of PET fiber braided net. The finished hose can be fully flattened after pressure relief for convenient rolling, storage and transportation, featuring high burst pressure, anti‑tension performance.
Applicable hose size: 2‑6 inch inner diameter. Raw materials adopt PE pellets and PET yarn. The whole line integrates extrusion, fiber braiding, vacuum calibration, cooling, haul‑off and winding, realizing one‑step continuous finished‑hose production. Widely used for agricultural irrigation, farm water conveyance, garden water supply and large‑scale field water‑transport projects.
5.0
Payment Methods:
T/T(Telegraphic Transfer), Irrevocable L/C at sight, Western Union, Online platform payment(including Alibaba collection) , Accounts with the four major banks in China(ICBC, ABC, BOC, CCB), Citibank Hong Kong account
Shipping Methods:
Sea freight, Rail freight, Road freight (truck),Other shipping methods are also available upon request.
Delivery Time:
Standard voltage (380V / 50Hz): 45 days; Custom voltage (non-380V/50Hz): 60 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
extruder
SJ65/30 SJ55/30
Logo
AcceptCustomized Logo
Control
PLC+Touch Screen
Material
pe
Hole spacing
150-500mm
Screw type
Single screw
brand name
HWYAA
Weight (kg)
16000kg
place of origin
Shandong, China
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
key selling points
Double extruders cooperate with online fiber braiding unit to realize inner‑PE / fiber mesh / outer‑PE one‑step compounding. Finished hose can be fully flattened for easy roll‑up, storage and transport. Wide size range 2‑6 inch. Adopts international brand electrical parts, stable output, low failure rate. Ideal equipment for factories manufacturing irrigation conveyance hose.
Screw L/D Ratio
33:1
voltage
380v/220v
screw diameter (mm)
65mm 55mm
Product Features
- Integrated one‑step forming process Double extruders match online braiding unit. Inner PE layer, PET fiber net and outer PE layer are compounded in one continuous procedure, avoiding secondary laminating, reducing labor and intermediate‑process waste.
- Reliable mechanical configuration for stable output SJ65 & SJ55 nitrogen‑quenched 38CrMoAlA screw‑barrel assembly; ABB inverters for main drives, Schneider & Omron electric components. Stable output range:10‑90 kg/h. Screw‑barrel anti‑wear design ensures long‑time continuous running.
- Precise vacuum calibration & full‑stage cooling system 2 m stainless‑steel vacuum calibration tank + 3 m long cooling water tank. Effectively control hose roundness & dimension consistency, reduce finished‑product deformation.
- High‑performance fiber braiding unit 24×2 yarn braider, max speed 320 rpm. Uniform fiber mesh weaving improves hose tensile strength and burst‑resistance, making finished hose fit high‑pressure agricultural water‑delivery scenarios.
- Combined haul‑off & winding machine Integrated haul‑off and winding structure with ABB variable‑frequency control. Running speed adjustable 0.8‑10 m/min, stable tension control for neat hose rolls, no wrinkling.
- Wide‑range product adaptability Matching interchangeable dies for 2‑6 inch ID hose. Customers can switch specifications to produce different‑size fiber‑reinforced lay‑flat hose for diversified market orders.
- Complete supporting configuration Equipped with auto material loader & dryer hopper, circulating cooling‑water system, independent electrical cabinets. Ready‑to‑run complete‑set solution, no extra scattered‑parts procurement required.
Application Scenarios
Things we have accomplished
COOPERATION
ACHIEVEMENTS
ACHIEVEMENTS
Main Components
Fabric Machine
Die and mould
inner layer and outer layer
Haul-off unit and winder incorporate machine
A.Single screw extruder: SJ-65×33
B.Single screw extruder: SJ-55×33
Hose guide unit
Vacuum Calibration
Customer Case
In 2025, HWYAA partnered with a top Uzbek water-saving irrigation enterprise. Plagued by inefficiencies of traditional manual punching, the enterprise inspected HWYAA's pre-drilling line in China, confirmed satisfaction on-site, and signed the contract immediately.
HWYAA delivered the equipment as scheduled, with on-site installation, commissioning and full training provided by our engineers. The client praised: "Stable operation, easy operation, exceeding expectations" — its productivity and competitiveness improved significantly.
Driven by proven benefits and trust, the client plans to purchase all available stock.
Machine testing
Leading water-saving irrigation enterprise from uzbekistan visits china for factory inspection and machine testing
Customized Solution
Plc precision hole control + ultrasonic integrated forming + touchscreen easy operation
Machine Testing
Engineers dispatched for on-site installation and training
Fastest Repurchase
Recognized immediately after first order delivery, client says "take all available stock"
In-stock Packing
Fast Shipping
